R5-CX
WORLDS WINNER
From Marianne Vos winning a rainbow jersey in the first year of R5-CX’s existence, to Wout Van Aert dominating kerstperiode races, to Fem Van Empel three-peating World Championships from 2023 to 2025, R5-CX has delivered more podiums and wins per outing than any bike we’ve ever made. It’s the platonic ideal of a cyclocross bike—simple, efficient, and incredibly fast. There’s an enormous amount of clearance for mud, a seatpost that won’t twist in a crash, and tidy internal routing to keep the elements at bay.
THE ULTIMATE CX FRAME

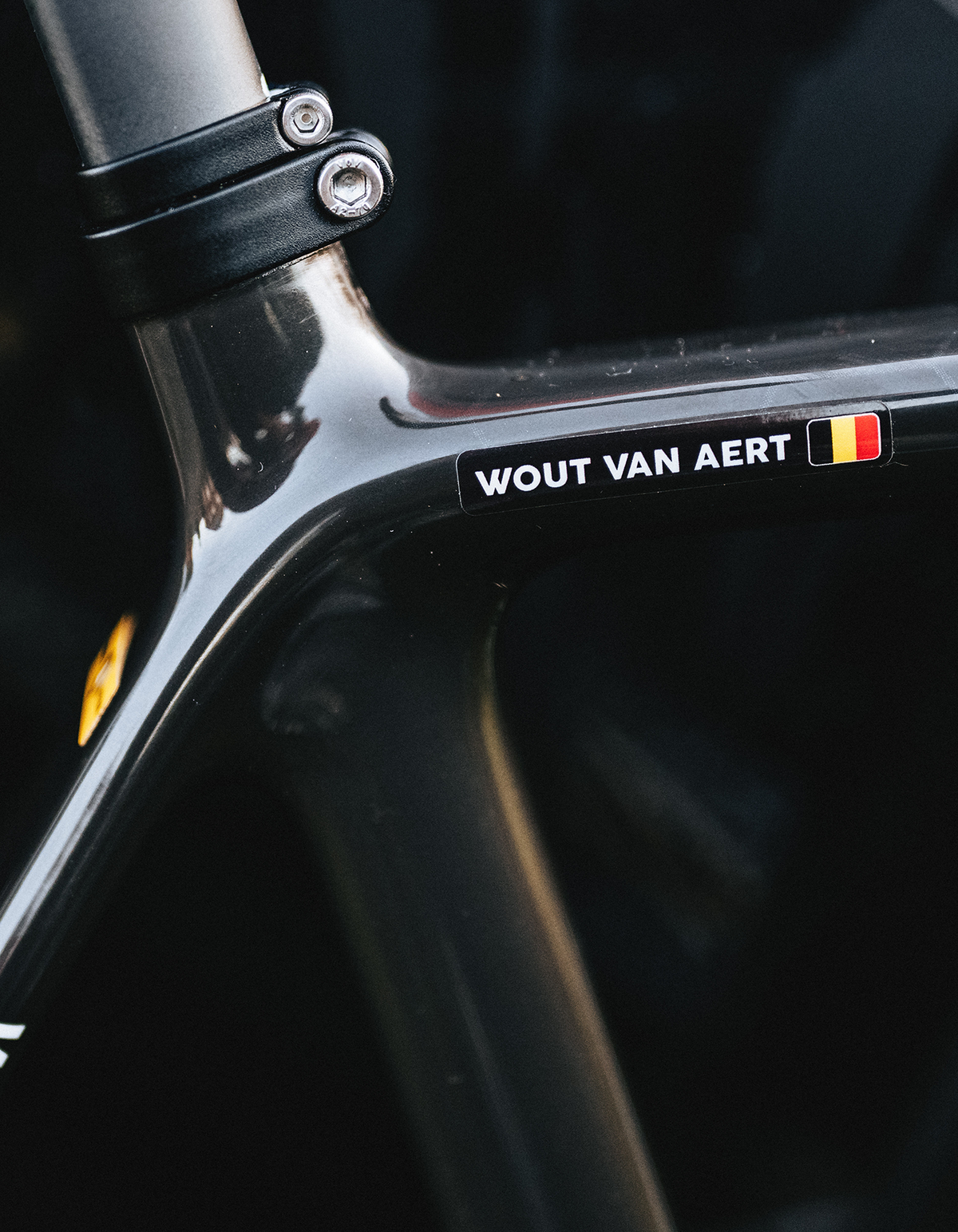

The D-shaped seat post (with double clamps, stock), not only adds compliance but was a specific request from Wout and Marianne to keep the saddle facing forward in the event of a crash. All cables route internally, and the frame is only compatible with electronic drivetrains to limit grit and water ingress.

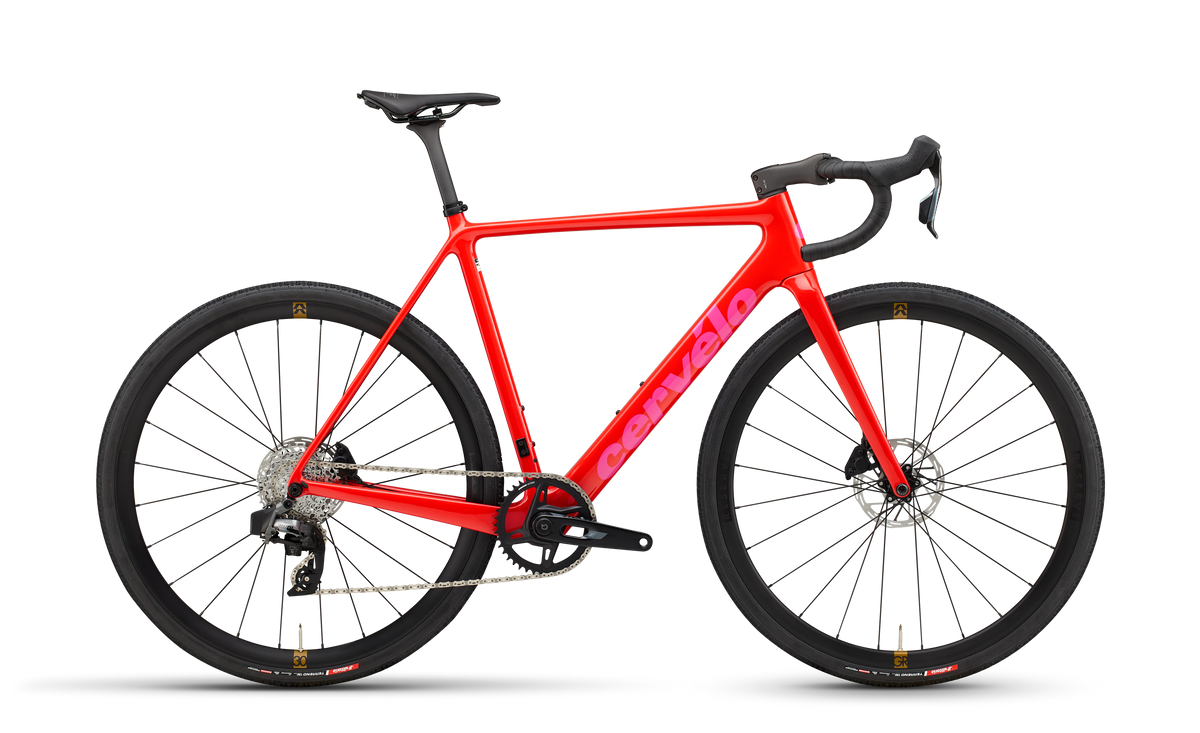

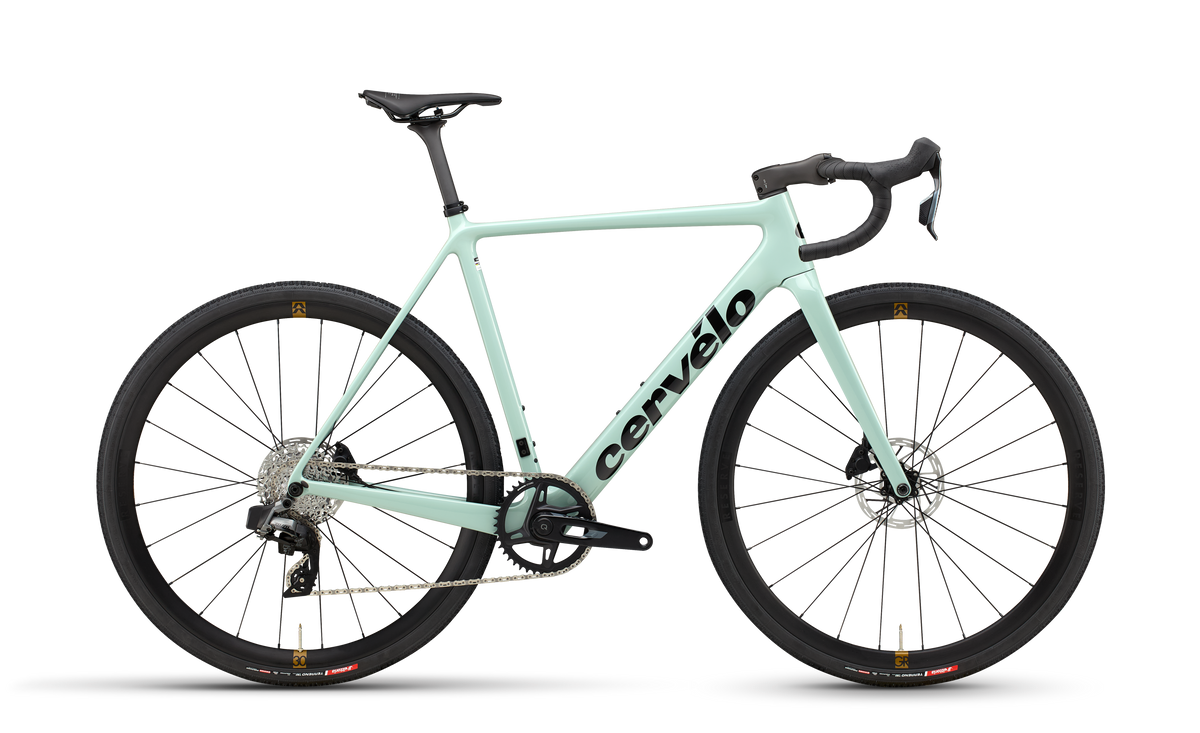

R5-CX Rival AXS 1

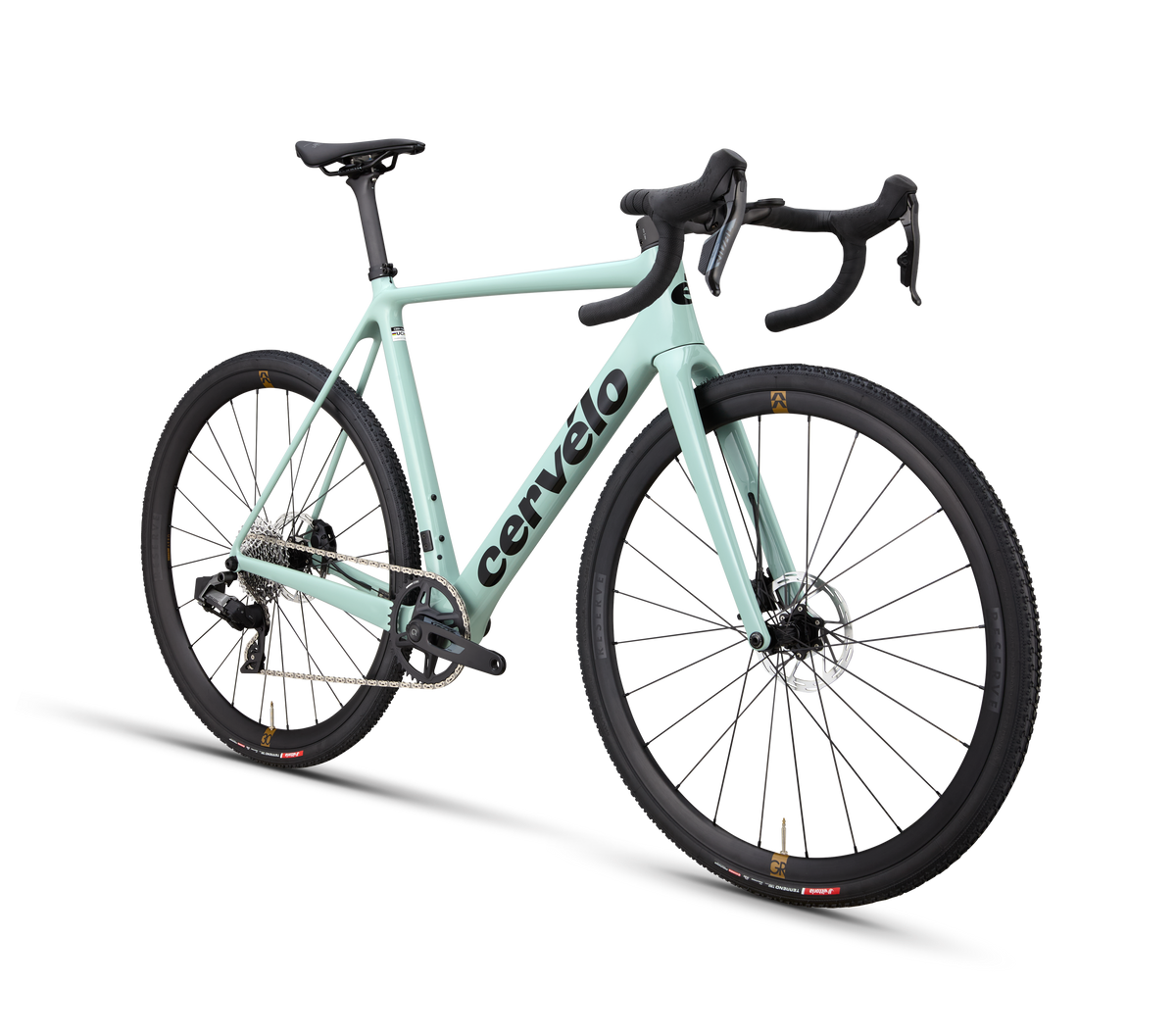

Three quarter view drawer

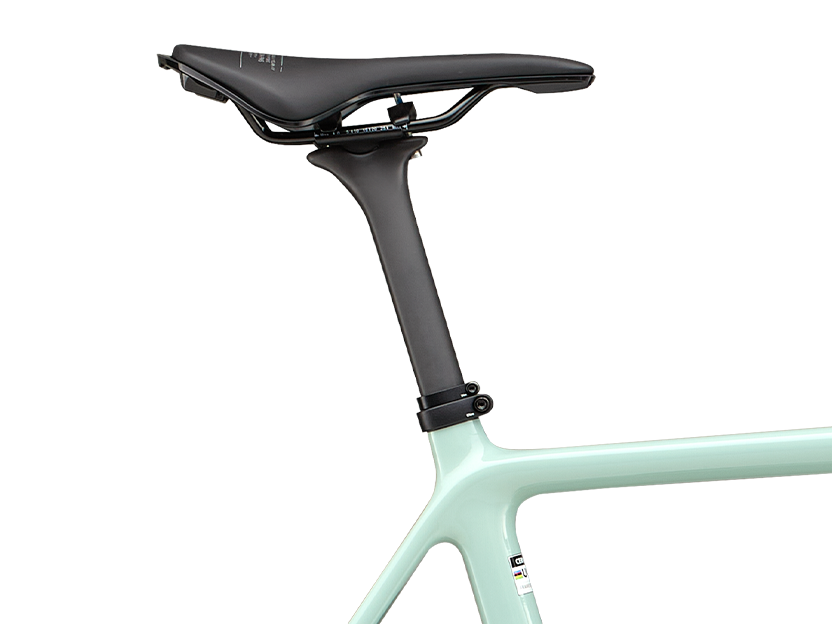

R5-CX uses the same D-shaped seatpost as the R5 frame, which was a specific request from World Champions, Marianne Vos and Wout van Aert. It adds a bit of compliance, but also keeps the saddle from twisting in the event of a crash.

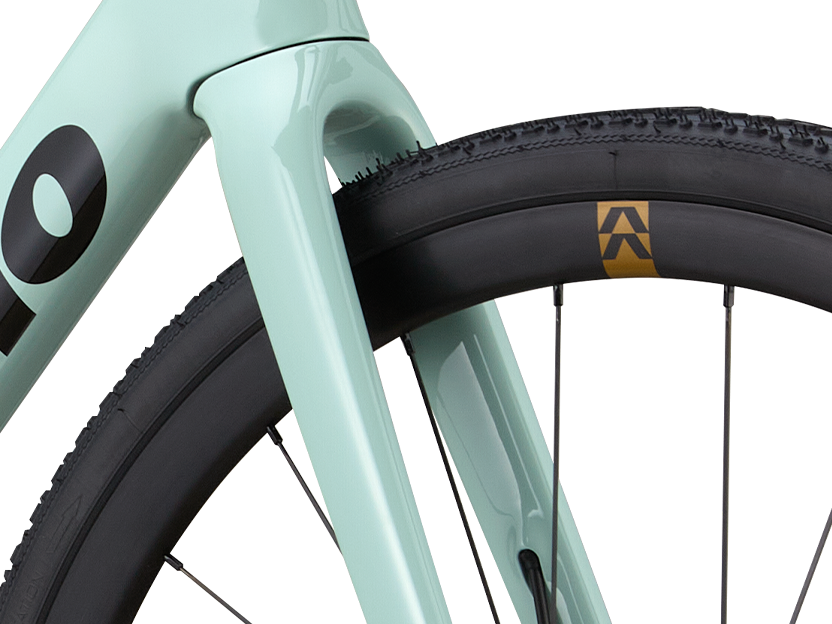

The clearance in the R5-CX frame is similar to that of our Áspero gravel bikes, but since cyclocross races mandate a 33mm tire, even the stickiest of mud should clear the frame to help keep you rolling.
Straight on view drawer
| Specs | |
|---|---|
|
Headset |
|
|
Fork Axle to Crown |
|
|
Fork Offset |
|
|
Fork Compatibility |
|
|
Suspension System |
|
|
Rear Travel |
|
|
Recommended Sag |
|
|
Shock Length |
|
|
Shock Stroke |
|
|
Shock Mounting Hardware Upper |
|
|
Shock Mounting Hardware Lower |
|
|
Shock Bushing Size Front |
|
|
Shock Bushing Size Rear |
|
|
Bottom Bracket Shell |
|
|
Chainline |
|
|
Max Chainring Size |
|
|
Front Derailleur Mount |
|
|
Chainguide Standard |
|
|
Derailleur Hanger |
|
|
UDH Compatible |
|
|
Front Spacing |
|
|
Rear Spacing |
|
|
Rear Brake Mount |
|
|
Front Brake Mount |
|
|
Rear Brake Mount |
|
|
Max Rotor Size |
|
|
Max Tire Clearance May vary according to tire and rim model |
|
|
Seat Post Diameter |
|
|
Seat Clamp Diameter |
|
|
Sealant |
|
|
Water Bottle Mounts |
|
|
Downtube Storage |
| 51 | 54 | 56 | 58 | |
|---|---|---|---|---|
| Reach | 371 | 380 | 389 | 398 |
| Stack | 520 | 540 | 560 | 580 |
| Bb drop | 63 | 63 | 63 | 63 |
| Chainstay length | 425 | 425 | 425 | 425 |
| Seat tube angle | 75° | 74° | 74° | 73° |
| Head tube angle | 71.5° | 71.5° | 71.5° | 72° |
| Fork axle to crown | 401 | 401 | 401 | 401 |
| Fork offset | 51 | 51 | 51 | 48 |
| Trail | 58.7 | 58.7 | 58.7 | 58.7 |
| Front center | 581 | 597 | 612 | 620 |
| Head tube length | 97 | 118 | 139 | 157 |
| Wheelbase | 998 | 1014 | 1029 | 1037 |
| Standover height | 775 | 789 | 803 | 820 |
| Seat tube length | 537 | 550 | 560 | 575 |
| Top tube length | 517 | 536 | 556 | 574 |
Download manuals below for setup, care, and reference information for your Cervélo R5-CX.
Find genuine replacement parts for your R5-CX using our Spare Parts Finder below.
Find small partsCheck our FAQs section, or get in touch with our customer service team for further support with your R5-CX.
Chat with a Cervélo Expert“Undeniably, the Cervélo R5-CX is an excellent race bike. But equally, it’s simply a great-riding bicycle.”Bicycling
