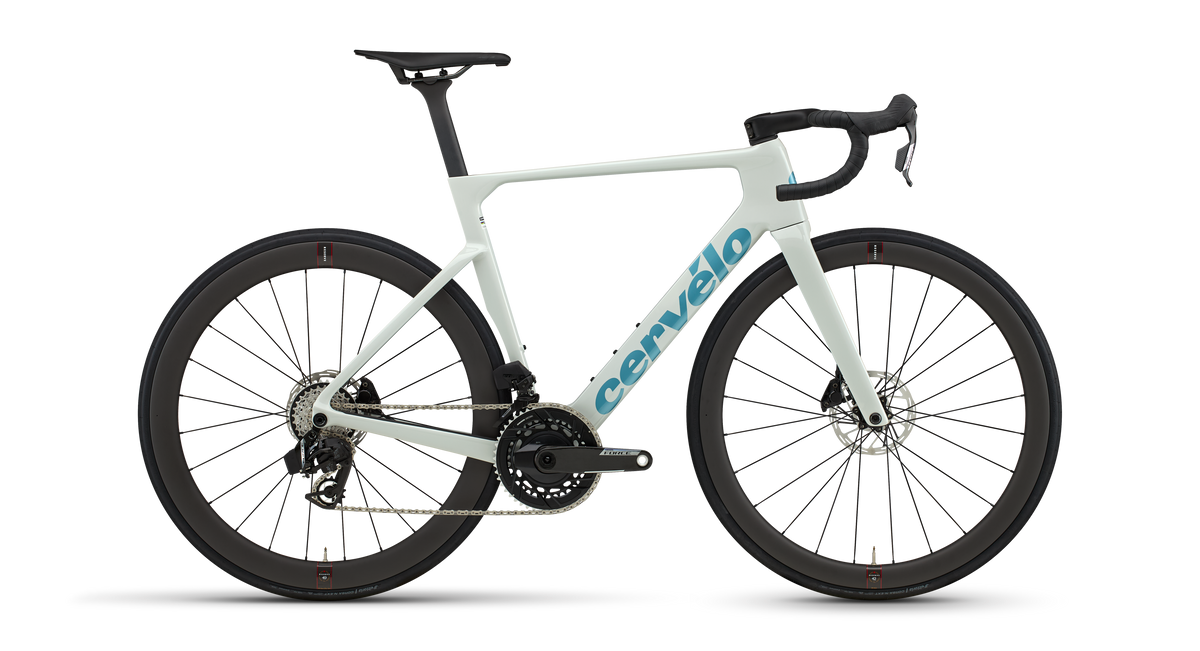

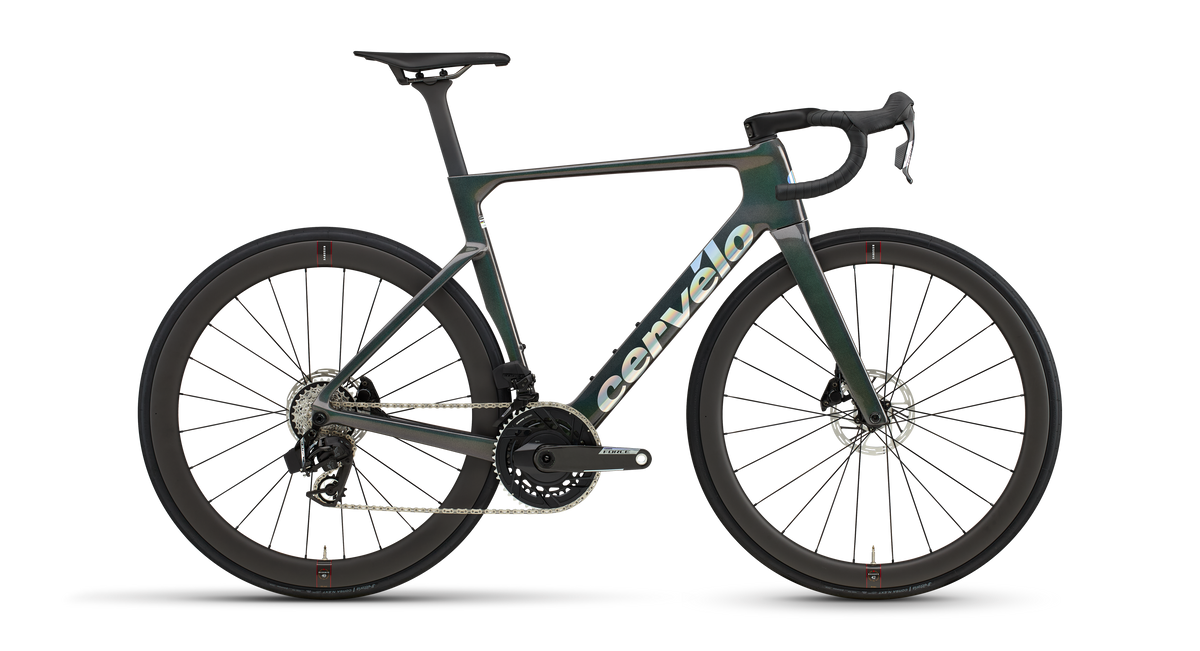

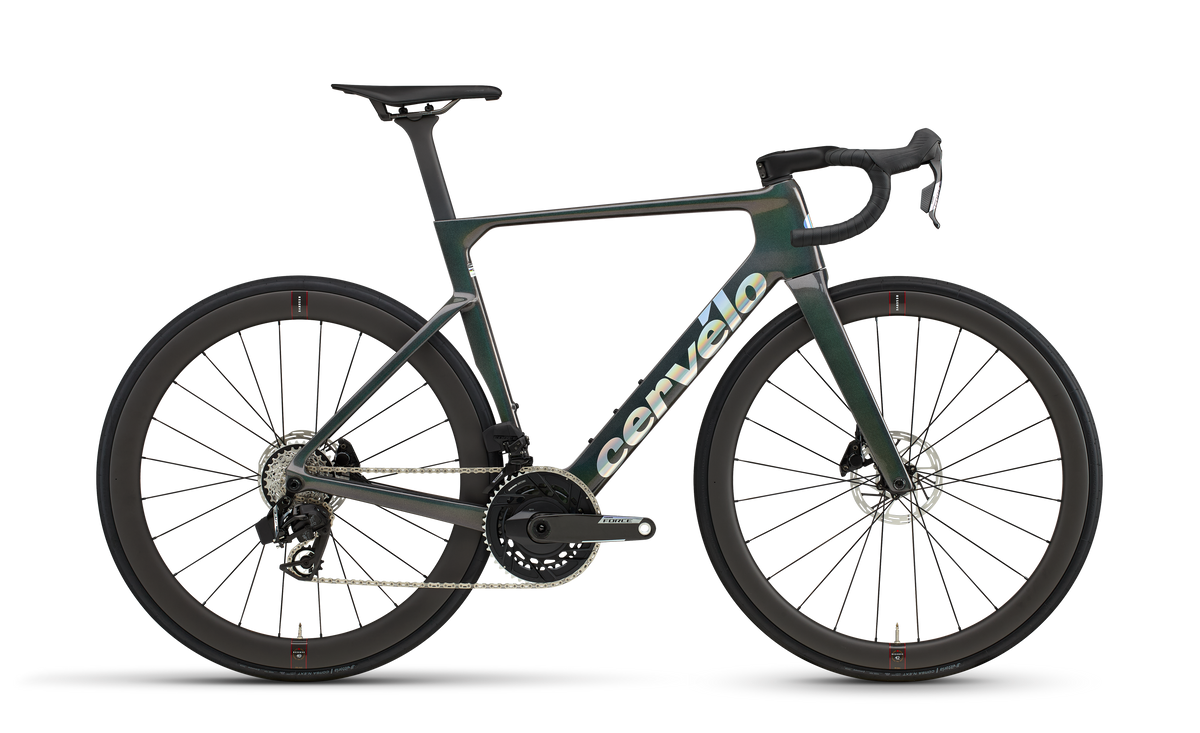

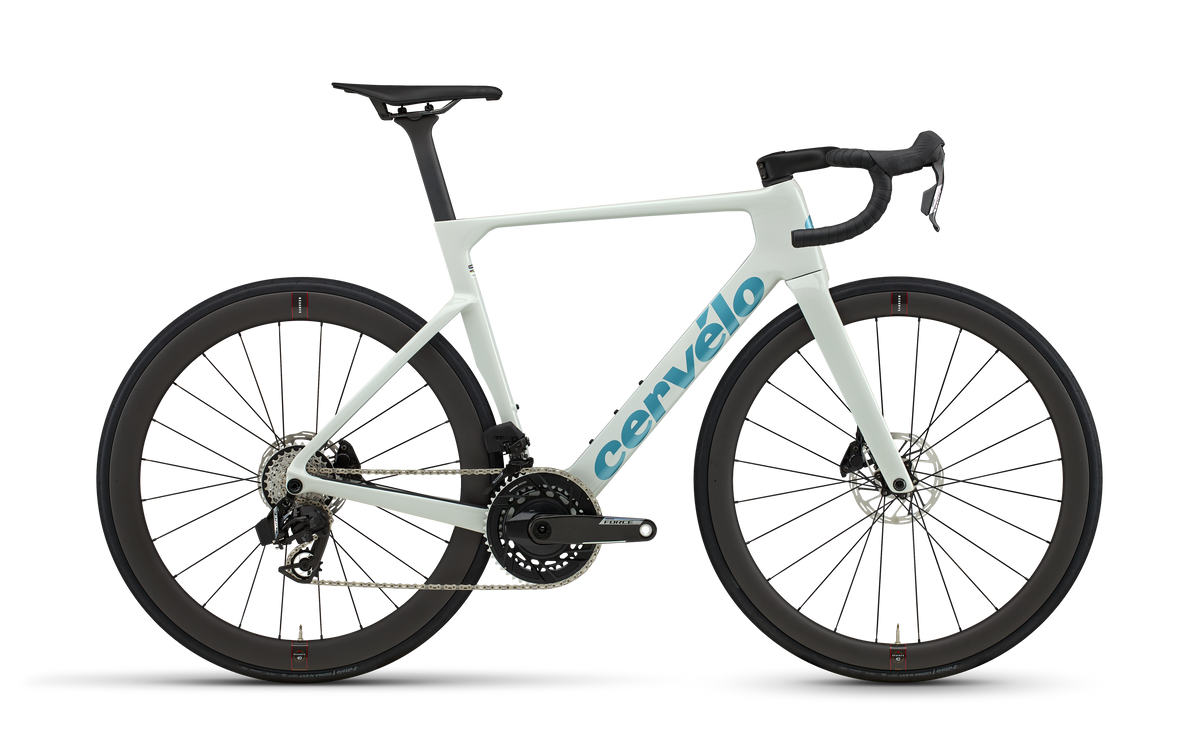

Soloist force axs

Frame
Material
Features
Frame
Fork
Shock
Travel
Weight
Wheel Size
Accessories
Drivetrain
Bottom Bracket
Cassette
Chain
Chainguide
Crank Length
Crankset
Front Derailleur
Left Shifter
Rear Derailleur
Right Shifter
Shifters
Bar End Satellite Shifter
Translation missing: en.bike_data.specs_labels.specs.bar_end_shifter
Satellite Shifter
Chainring
Power Meter
Remote
Brakes
Brakes
Front Brakes
Front Rotor
Rear Brakes
Rear Rotor
Rotors
Cockpit
Bar Width
Dropper Length
Grips / Bar Tape
Handlebars
One Piece Handlebar Stem
Aero Basebar
Aero Cockpit
Aero Extension
Aero Riser
Headset
Saddle
Seatpost
Seatpost Offset
Stem
Stem Length
Wheels
Front Wheel
Front Rim
Front Hub
Front Tire
Front Thru Axle
Rear Wheel
Rear Rim
Rear Hub
Rear Tire
Rear Thru Axle
Tires
Rims
Valves
Ebike
Battery
Drive Unit
Battery Charger
Display
Classification
Range Extender

Specs
Headset
Fork Axle to Crown
Fork Offset
Fork Compatibility
Suspension System
Rear Travel
Recommended Sag
Shock Length
Shock Stroke
Shock Mounting Hardware Upper
Shock Mounting Hardware Lower
Shock Bushing Size Front
Shock Bushing Size Rear
Bottom Bracket Shell
Chainline
Max Chainring Size
Front Derailleur Mount
Chainguide Standard
Derailleur Hanger
UDH Compatible
Front Spacing
Rear Spacing
Rear Brake Mount
Front Brake Mount
Rear Brake Mount
Max Rotor Size
Max Tire Clearance May vary according to tire and rim model
Seat Post Diameter
Seat Clamp Diameter
Sealant
Water Bottle Mounts
Downtube Storage

Have Questions? Contact customer service

Color

Black Magic

Size

48

51

54

56

58

61

Fits

£7,000 GBP

Built To Race

The new Soloist is built for racers. Not the ones on TV. The ones riding through the sunrise before work. The ones gathered at the shop for the Tuesday night fast ride. The ones logging highway time to get to the start line. The ones who don’t just “trust the process,” they live the process. Soloist has always been a bike for the riders willing to take risks, to get into the break, and to make their own luck. Faster. Lighter. And race-ready right off the floor, at 6.86kg.

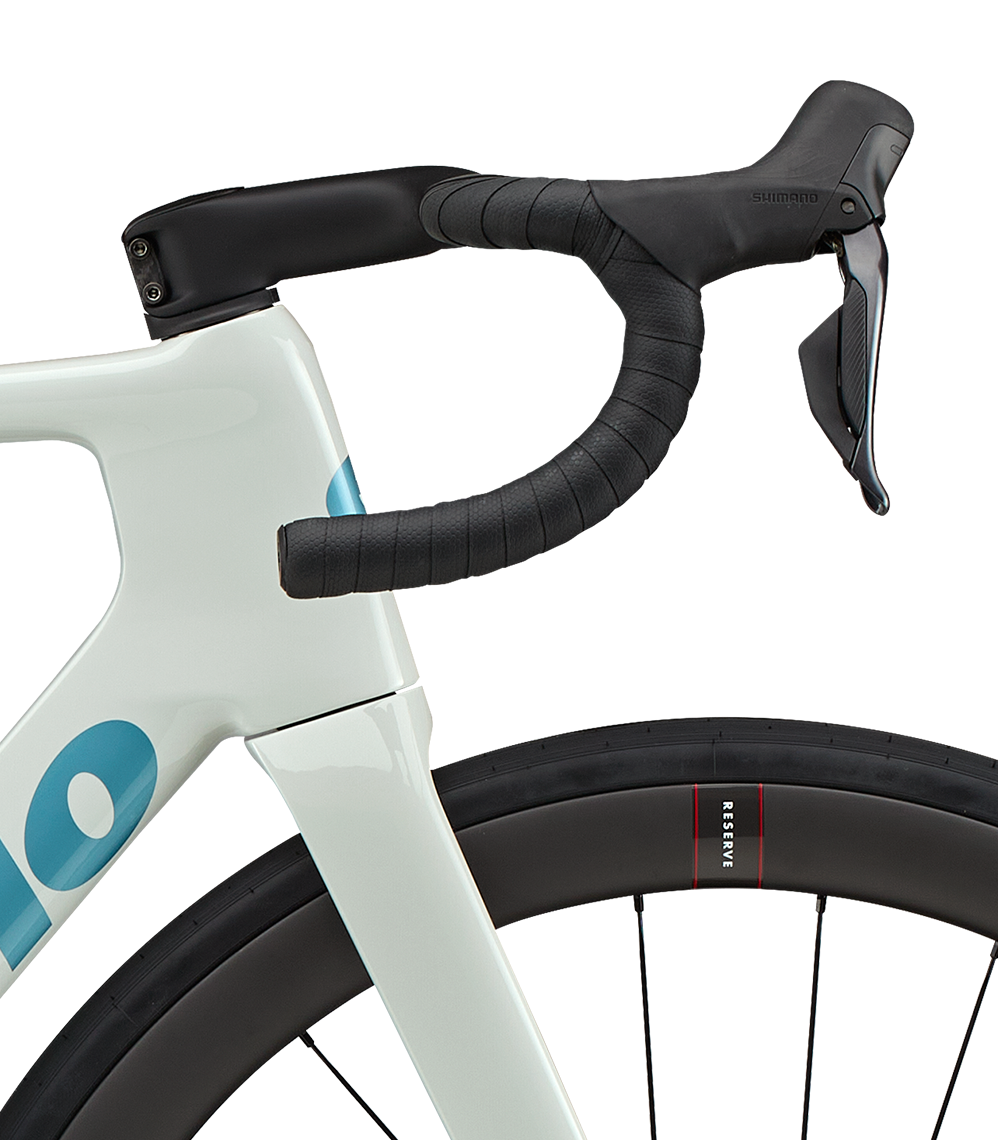

Light & Aero Cockpit

One-piece carbon cockpit | carbon seatpost.

SRAM Force AXS Drivetrain

SRAM's second-tier drivetrain delivers all the crispness and refinement of RED at a slightly higher weight and lower price, and still includes a power meter.

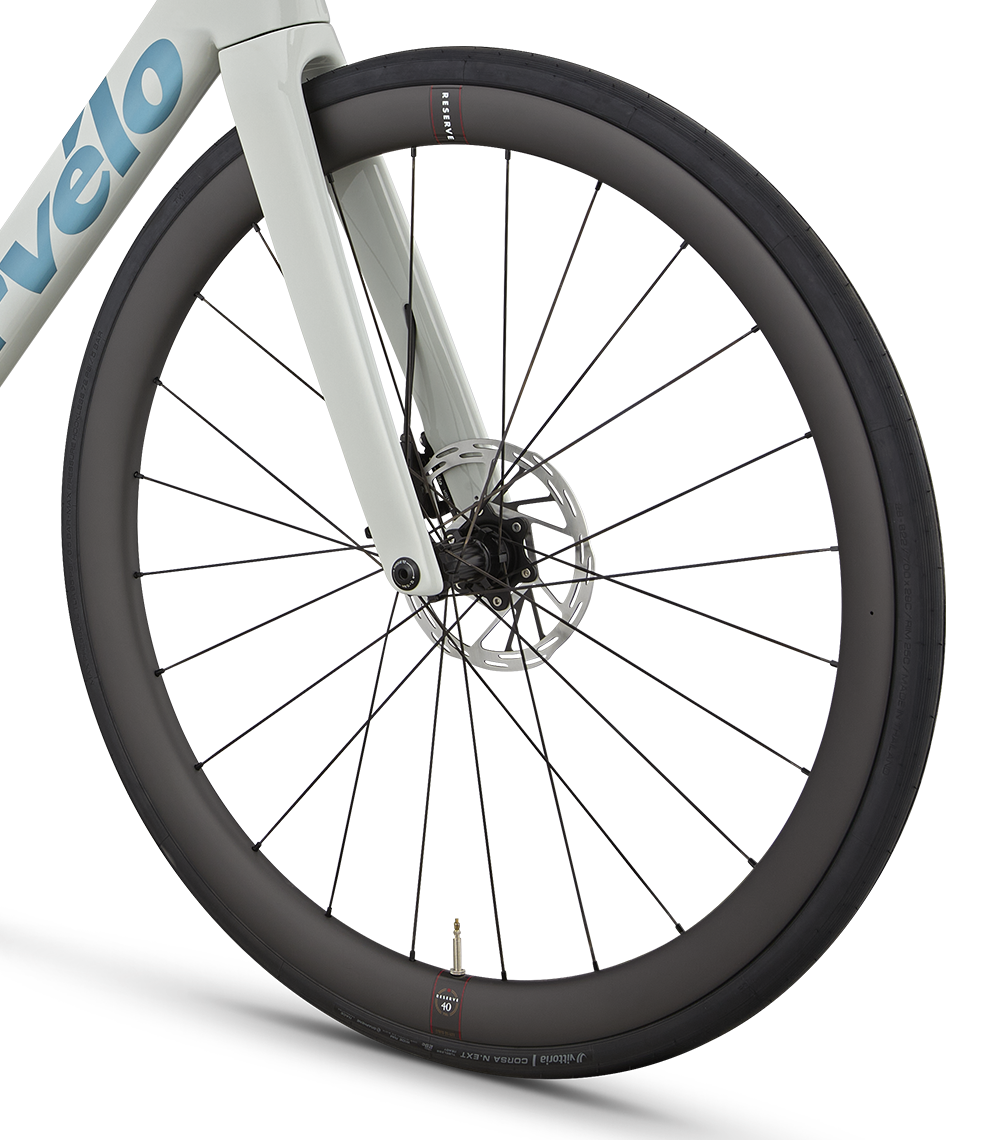

Reserve Wheels & DT350 Hubs

Reserve's ultra-fast, all-around aero 42|49TA rims laced to DT Swiss 350 hubs for a fast, stable, reliable wheelset.

Frame
Material
Features
Frame
Fork
Shock
Travel
Weight
Wheel Size
Accessories
Drivetrain
Bottom Bracket
Cassette
Chain
Chainguide
Crank Length
Crankset
Front Derailleur
Left Shifter
Rear Derailleur
Right Shifter
Shifters
Bar End Satellite Shifter
Translation missing: en.bike_data.specs_labels.specs.bar_end_shifter
Satellite Shifter
Chainring
Power Meter
Remote
Brakes
Brakes
Front Brakes
Front Rotor
Rear Brakes
Rear Rotor
Rotors
Cockpit
Bar Width
Dropper Length
Grips / Bar Tape
Handlebars
One Piece Handlebar Stem
Aero Basebar
Aero Cockpit
Aero Extension
Aero Riser
Headset
Saddle
Seatpost
Seatpost Offset
Stem
Stem Length
Wheels
Front Wheel
Front Rim
Front Hub
Front Tire
Front Thru Axle
Rear Wheel
Rear Rim
Rear Hub
Rear Tire
Rear Thru Axle
Tires
Rims
Valves
Ebike
Battery
Drive Unit
Battery Charger
Display
Classification
Range Extender

Please note: price and parts spec information is subject to change. Final weights may vary based on size, spec, and paint

Specs
Headset
Fork Axle to Crown
Fork Offset
Fork Compatibility
Suspension System
Rear Travel
Recommended Sag
Shock Length
Shock Stroke
Shock Mounting Hardware Upper
Shock Mounting Hardware Lower
Shock Bushing Size Front
Shock Bushing Size Rear
Bottom Bracket Shell
Chainline
Max Chainring Size
Front Derailleur Mount
Chainguide Standard
Derailleur Hanger
UDH Compatible
Front Spacing
Rear Spacing
Rear Brake Mount
Front Brake Mount
Rear Brake Mount
Max Rotor Size
Max Tire Clearance May vary according to tire and rim model
Seat Post Diameter
Seat Clamp Diameter
Sealant
Water Bottle Mounts
Downtube Storage

Please note: price and parts spec information is subject to change. Final weights may vary based on size, spec, and paint

Soloist Sizing Chart

Size 48

149.9cm 4'11" - 160cm 5'3" Reach: 369mm

Size 51

160.0cm 5'3" - 167cm 5'6" Reach: 377mm

Size 54

167.6cm 5'6" - 175cm 5'9" Reach: 383mm

Size 56

175.3cm 5'9" - 182cm 6'0" Reach: 391mm

Size 58

182.9cm 6'0" - 193cm 6'4" Reach: 400mm

Size 61

193.0cm 6'4" - 200cm 6'7" Reach: 408mm

All units are in millimeters or degrees.

	48	51	54	56	58	61
Reach	369	377	383	391	400	408
Stack	496	520	545	568	591	611
Head tube angle	71°	72°	73°	73°	73°	73°
Head tube length	89.6	109.3	132	156	182.8	203.7
Front center	579.1	579.9	579.5	594.2	610.8	624.8
Bb drop	76.5	76.5	74	74	71.5	71.5
Wheelbase	976.8	977.6	978	992.8	1010.3	1024.5
Top tube length	506	526	545	565	581	595
Seat tube length	432.2	481.7	507	530.4	553	571.6
Seat tube angle	75°	74°	74°	73°	73°	73°
Seat tube max insertion	170	208	230	248	277	296
Standover height	707.6	747.1	773.8	811.6	820.7	839
Chainstay length	410	410	410	410	410	410
Trail	57.3	57.3	57.3	57.3	57.3	57.3
Fork offset	57.5	51.5	45.5	45.5	45.5	45.5
Fork axle to crown	373	373	373	373	373	373
