The Ultimate Gravel All-Rounder

Áspero remains true to its original brief, but with some improvements: a threaded BB shell, neater cable routing, and a UDH-compatible derailleur hanger for those who want to use SRAM’s Transmission drivetrains. And it’s more aero, of course. In the case of Áspero, aerodynamic performance is less about pure speed as a result of drag reduction, and more about conservation of energy. After a big day in a headwind, the three watts saved over the previous Áspero might add up to one less energy gel your stomach has to digest—WORTH IT.

Carbon Cockpit

A carbon handlebar and seatpost deliver precise handling and fatigue reduction.

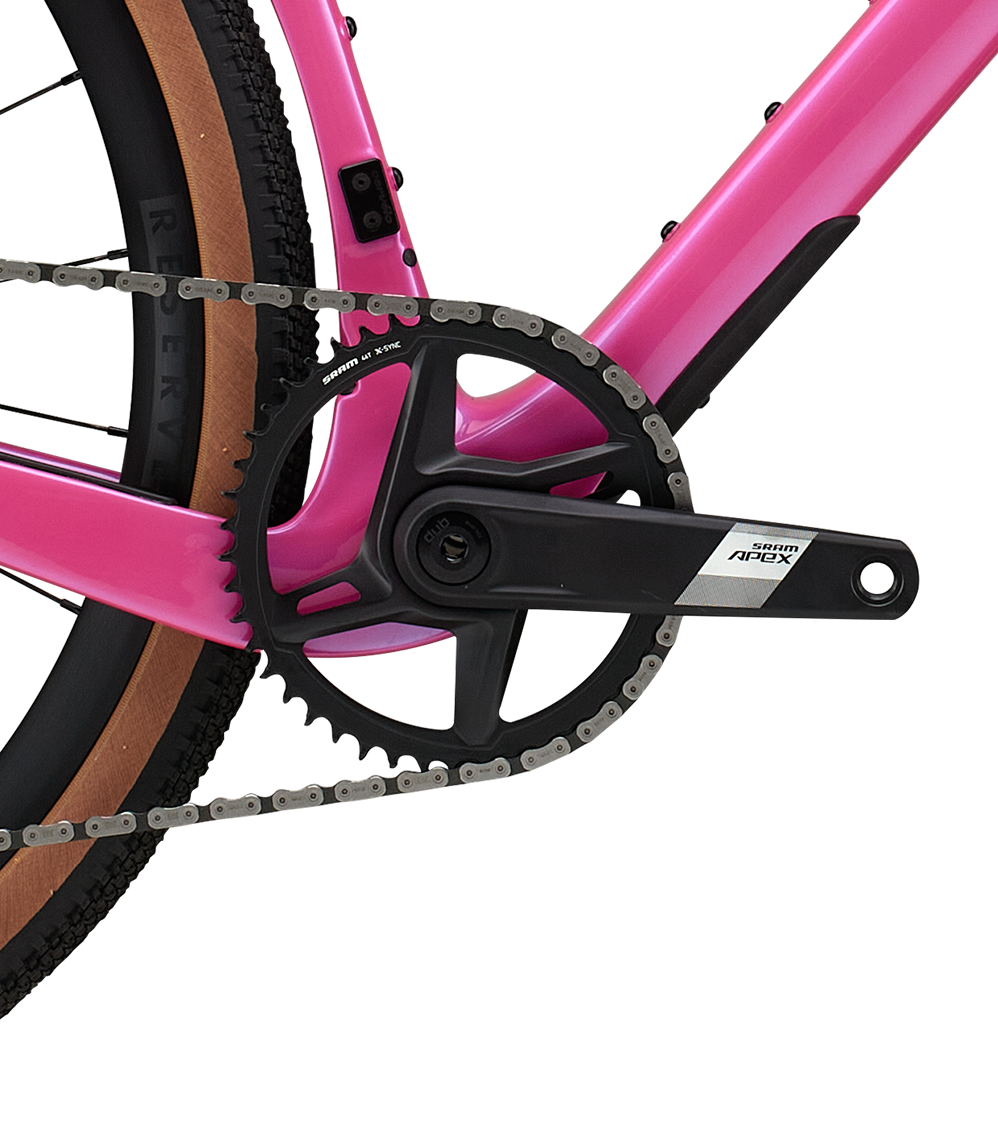

SRAM Apex AXS 1

SRAM's entry-level electronic drivetrain delivers a broad range of gear ratios and crisp shifting. A 46-tooth chainring drives a 10-52 12-speed cassette.

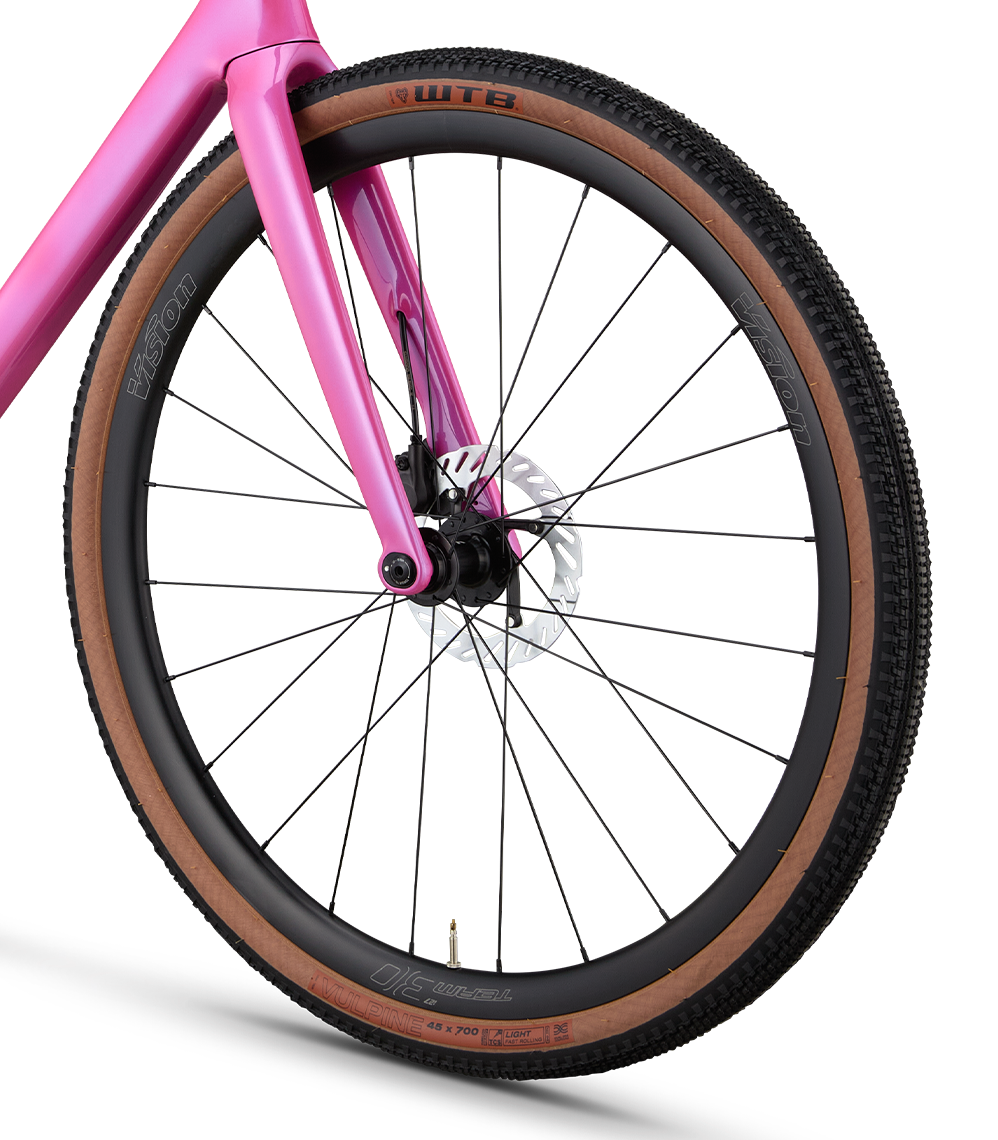

Alloy Wheels With A Lietime Warranty

Reserve's 30 GR AL wheelset is light, reliable, and backed by a lifetime warranty.

Frame
Material
Features
Frame
Fork
Shock
Travel
Weight
Wheel Size
Accessories
Drivetrain
Bottom Bracket
Cassette
Chain
Chainguide
Crank Length
Crankset
Front Derailleur
Left Shifter
Rear Derailleur
Right Shifter
Shifters
Bar End Satellite Shifter
Translation missing: en.bike_data.specs_labels.specs.bar_end_shifter
Satellite Shifter
Chainring
Power Meter
Remote
Brakes
Brakes
Front Brakes
Front Rotor
Rear Brakes
Rear Rotor
Rotors
Cockpit
Bar Width
Dropper Length
Grips / Bar Tape
Handlebars
One Piece Handlebar Stem
Aero Basebar
Aero Cockpit
Aero Extension
Aero Riser
Headset
Saddle
Seatpost
Seatpost Offset
Stem
Stem Length
Wheels
Front Wheel
Front Rim
Front Hub
Front Tire
Front Thru Axle
Rear Wheel
Rear Rim
Rear Hub
Rear Tire
Rear Thru Axle
Tires
Rims
Valves
Ebike
Battery
Drive Unit
Battery Charger
Display
Classification
Range Extender

Please note: price and parts spec information is subject to change. Final weights may vary based on size, spec, and paint

Specs
Headset
Fork Axle to Crown
Fork Offset
Fork Compatibility
Suspension System
Rear Travel
Recommended Sag
Shock Length
Shock Stroke
Shock Mounting Hardware Upper
Shock Mounting Hardware Lower
Shock Bushing Size Front
Shock Bushing Size Rear
Bottom Bracket Shell
Chainline
Max Chainring Size
Front Derailleur Mount
Chainguide Standard
Derailleur Hanger
UDH Compatible
Front Spacing
Rear Spacing
Rear Brake Mount
Front Brake Mount
Rear Brake Mount
Max Rotor Size
Max Tire Clearance May vary according to tire and rim model
Seat Post Diameter
Seat Clamp Diameter
Sealant
Water Bottle Mounts
Downtube Storage

Please note: price and parts spec information is subject to change. Final weights may vary based on size, spec, and paint

Áspero Sizing Chart

Size 48

149.9cm 4'11" - 160cm 5'3" Reach: 370mm

Size 51

160.0cm 5'3" - 167cm 5'6" Reach: 379mm

Size 54

167.6cm 5'6" - 175cm 5'9" Reach: 388mm

Size 56

175.3cm 5'9" - 182cm 6'0" Reach: 397mm

Size 58

182.9cm 6'0" - 193cm 6'4" Reach: 406mm

Size 61

193.0cm 6'4" - 200cm 6'7" Reach: 415mm

Trail Mixer Rwd Fwd

All units are in millimeters or degrees.

	48	51	54	56	58	61
Reach	370	379	388	397	406	415
Stack	505	530	555	580	605	630
Bb drop	78.5	78.5	76	76	73.5	73.5
Chainstay length	425	425	425	425	425	425
Seat tube angle	75°	74°	74°	73°	73°	73°
Head tube angle	71°	71.5°	72°	72°	72°	72°
Fork axle to crown	385	385	385	385	385	385
Fork offset	52	49	46	46	46	46
Front center	577	587	597	614	631	648
Head tube length	83	107	133	159	188	214
Wheelbase	990	999	1010	1028	1046	1063
Standover height	681	704	733	757	784	808
Seat tube length	437	461	485	510	530	554
Top tube length	512	532	553	575	591	608

	48	51	54	56	58	61
Reach	370	379	388	397	406	415
Stack	505	530	555	580	605	630
Bb drop	78.5	78.5	76	76	73.5	73.5
Chainstay length	425	425	425	425	425	425
Seat tube angle	75°	74°	74°	73°	73°	73°
Head tube angle	71°	71.5°	72°	72°	72°	72°
Fork axle to crown	385	385	385	385	385	385
Fork offset	57	54	51	51	51	51
Front center	582	592	602	619	637	654
Head tube length	83	107	133	159	188	214
Wheelbase	995	1004	1015	1033	1051	1068
Standover height	681	704	733	757	784	808
Seat tube length	437	461	485	510	530	554
Top tube length	512	532	553	575	591	608
