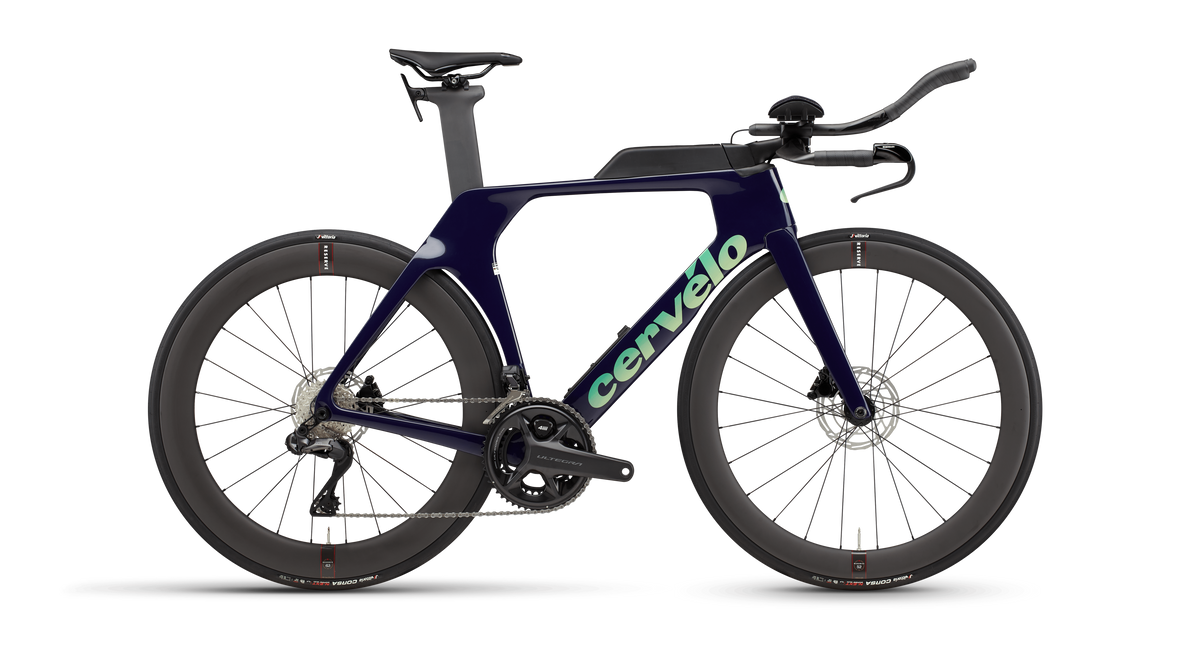

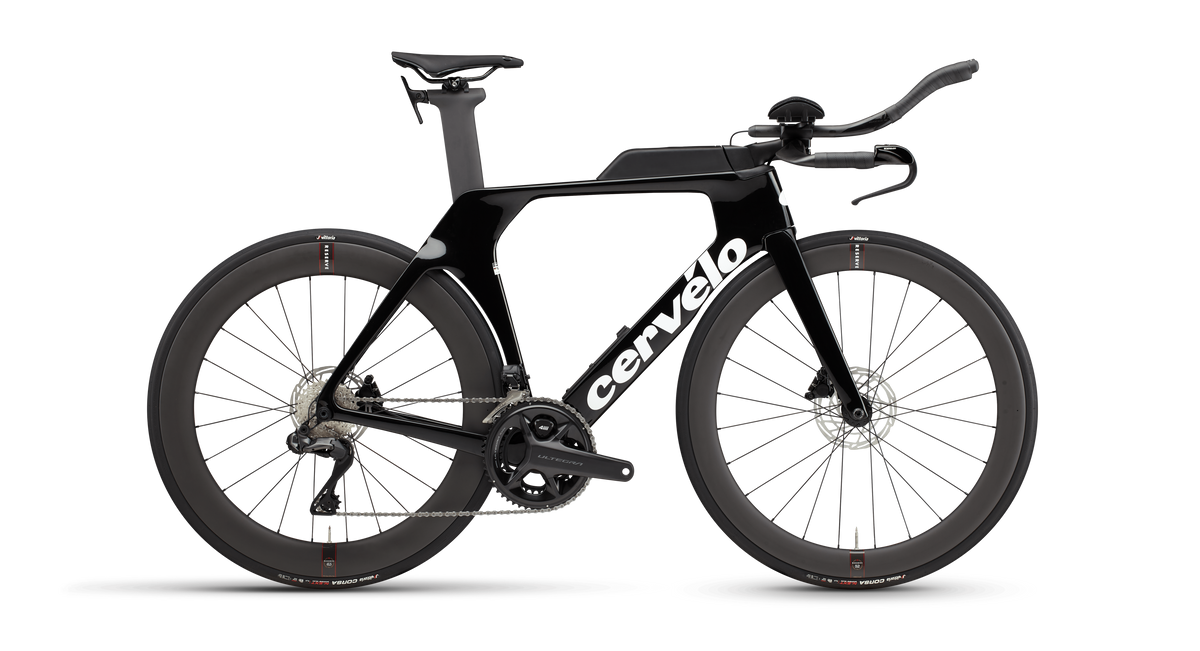

Geometry
ST Setting
All units are in millimeters or degrees.
| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach | 378 | 395 | 409 | 422 | 434 | 443 |
| Stack | 494 | 515 | 531 | 549 | 569 | 587 |
| Head tube angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| Head tube length | 88 | 102 | 118 | 137 | 158 | 177 |
| Front center | 581 | 583 | 602 | 620 | 638 | 653 |
| Bb drop | 80 | 80 | 80 | 80 | 80 | 80 |
| Wheelbase | 973 | 974 | 993 | 1012 | 1030 | 1045 |
| Top tube length | 510 | 533 | 551 | 569 | 587 | 600 |
| Seat tube length | 476 | 498 | 513 | 530 | 550 | 567 |
| Seat tube angle | 75° | 75° | 75° | 75° | 75° | 75° |
| Seat tube angle saddle height | 75 | 75 | 75 | 75 | 75 | 75 |
| Standover height | 734 | 755 | 770 | 787 | 806 | 823 |
| Chainstay length | 405 | 405 | 405 | 405 | 405 | 405 |
| Trail | 62.1 | 62.1 | 62.1 | 62.1 | 62.1 | 62.1 |
| Fork offset | 52 | 43 | 43 | 43 | 43 | 43 |
| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach | 378 | 395 | 409 | 422 | 434 | 443 |
| Stack | 494 | 515 | 531 | 549 | 569 | 587 |
| Head tube angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| Head tube length | 88 | 102 | 118 | 137 | 158 | 177 |
| Front center | 581 | 583 | 602 | 620 | 638 | 653 |
| Bb drop | 80 | 80 | 80 | 80 | 80 | 80 |
| Wheelbase | 973 | 974 | 993 | 1012 | 1030 | 1045 |
| Top tube length | 474 | 495 | 512 | 529 | 545 | 557 |
| Seat tube length | 476 | 498 | 513 | 530 | 550 | 567 |
| Seat tube angle | 79° | 79° | 79° | 79° | 79° | 79° |
| Seat tube angle saddle height | 79 | 79 | 79 | 79 | 79 | 79 |
| Standover height | 734 | 755 | 770 | 787 | 806 | 823 |
| Chainstay length | 405 | 405 | 405 | 405 | 405 | 405 |
| Trail | 62.1 | 62.1 | 62.1 | 62.1 | 62.1 | 62.1 |
| Fork offset | 52 | 43 | 43 | 43 | 43 | 43 |
Manuals & Files
Bike Manuals
Download manuals below for setup, care, and reference information for your Cervélo P-Series.
