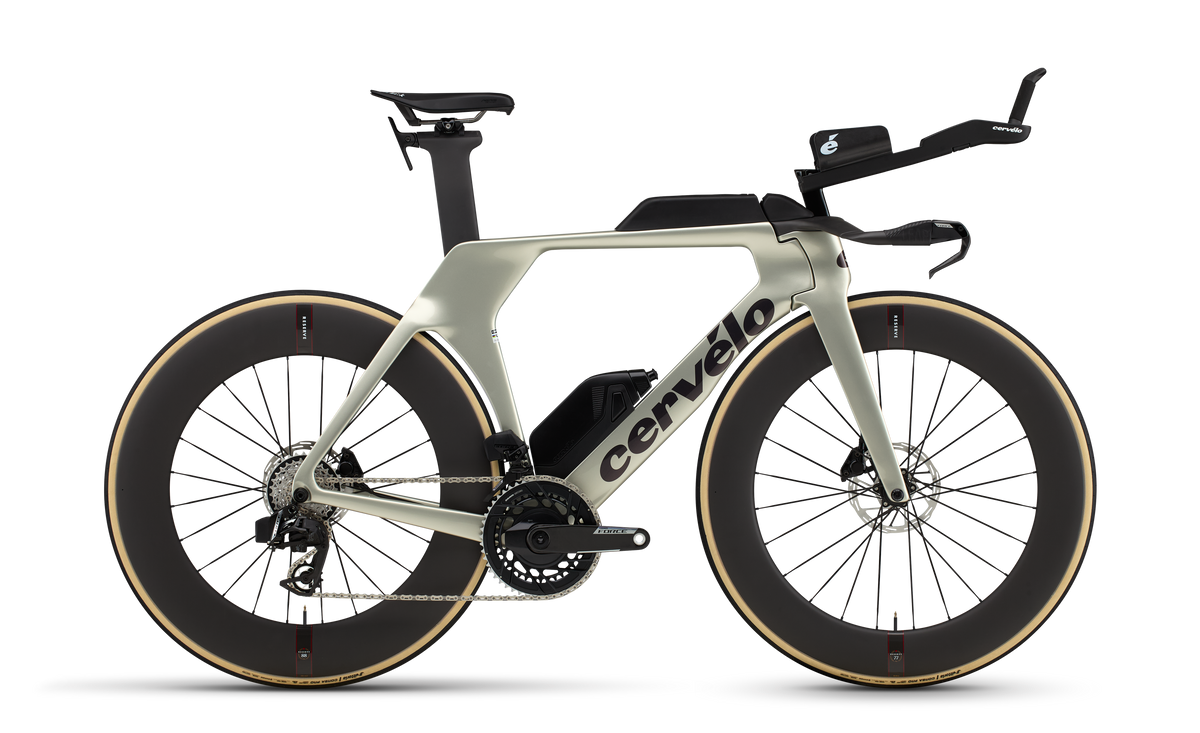

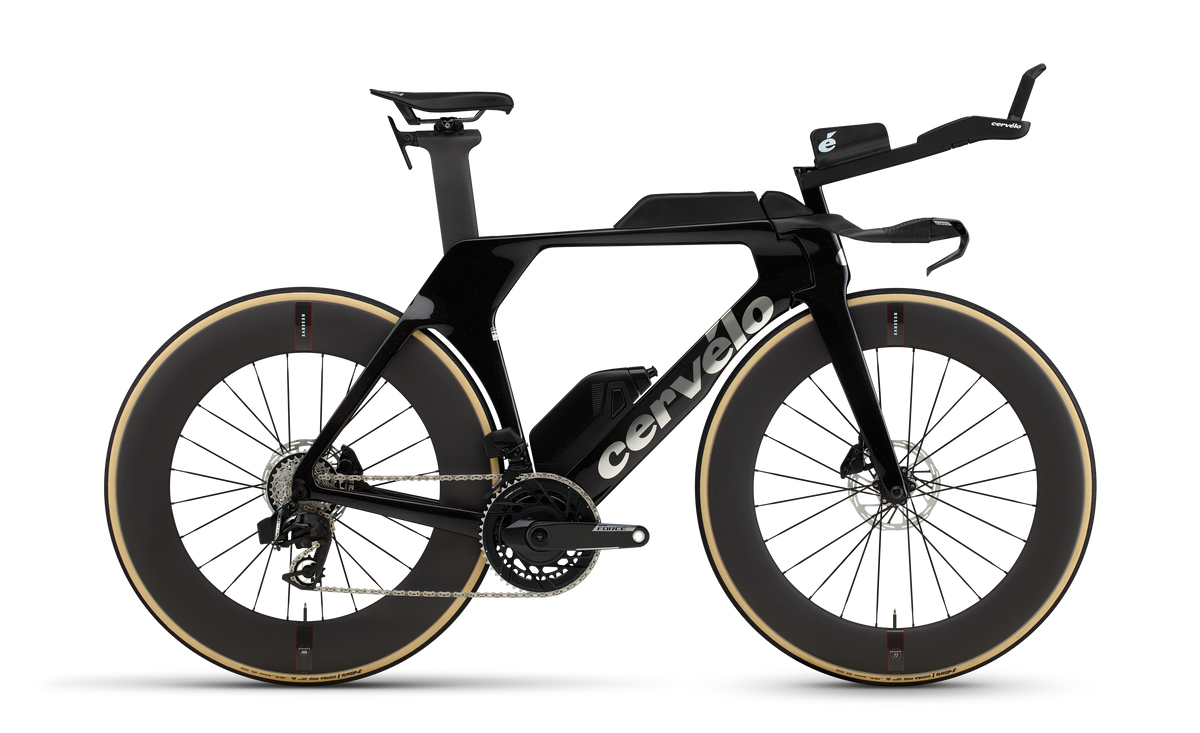

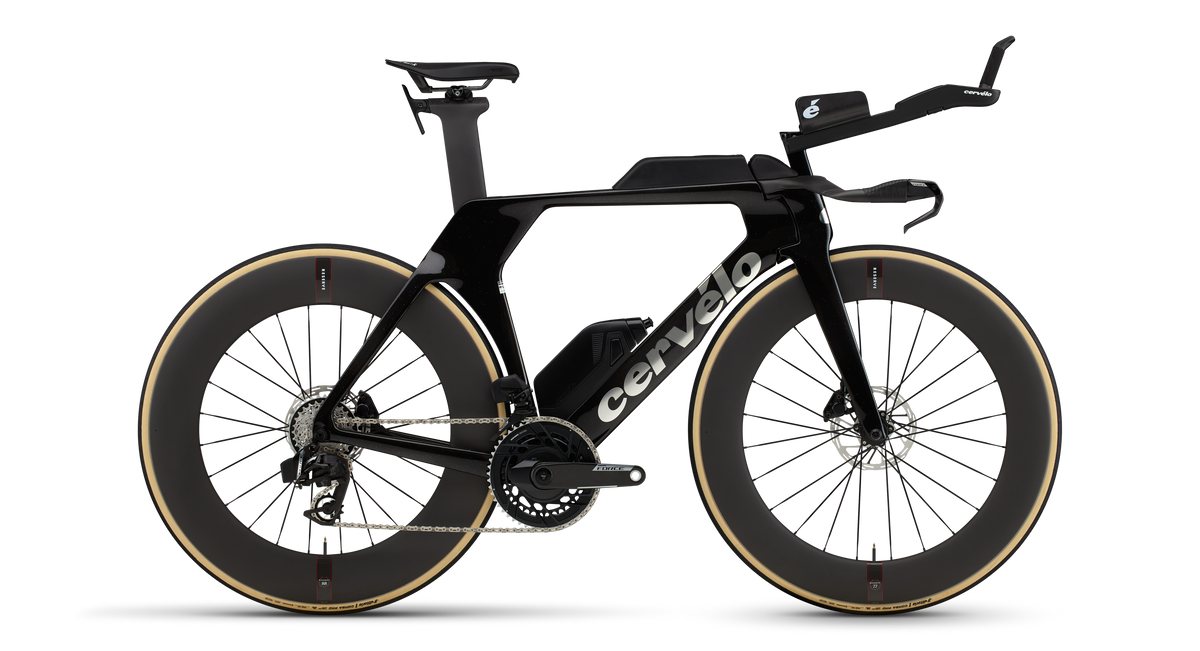

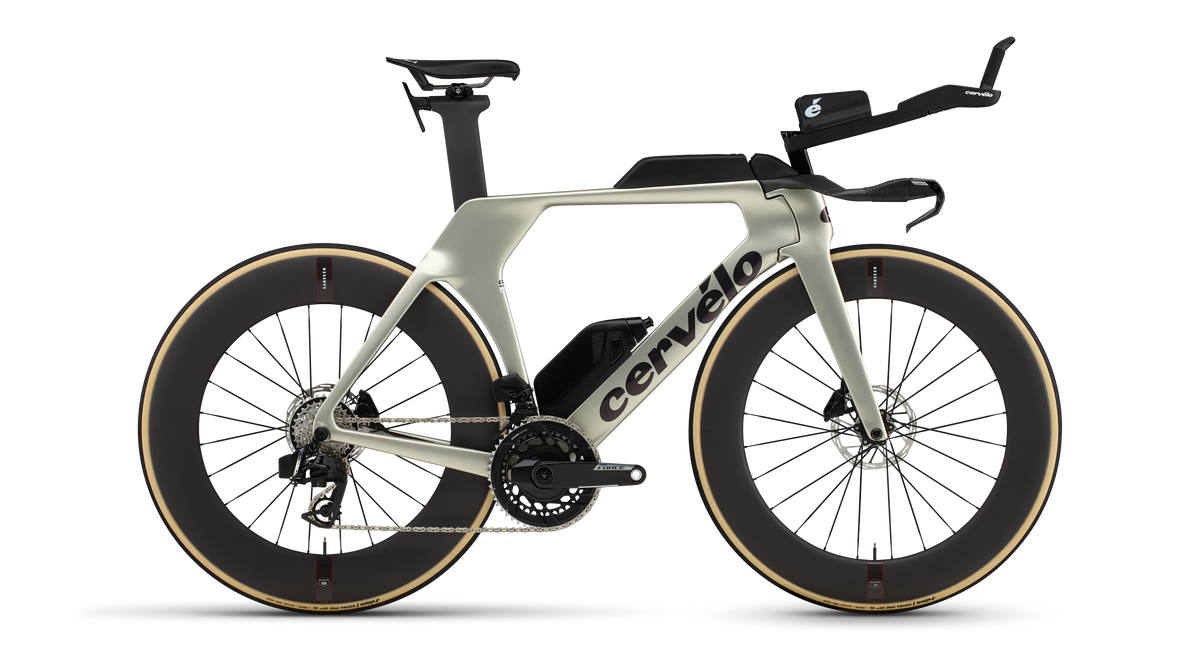

P5 force axs
Build Kit & Specs P5 force axs
| Frame | |
|---|---|
|
Material |
|
|
Features |
|
|
Frame |
|
|
Fork |
|
|
Shock |
|
|
Travel |
|
|
Weight |
|
|
Wheel Size |
|
|
Accessories |
|
| Drivetrain | |
|
Bottom Bracket |
|
|
Cassette |
|
|
Chain |
|
|
Chainguide |
|
|
Crank Length |
|
|
Crankset |
|
|
Front Derailleur |
|
|
Left Shifter |
|
|
Rear Derailleur |
|
|
Right Shifter |
|
|
Shifters |
|
|
Bar End Satellite Shifter |
|
|
Translation missing: de.bike_data.specs_labels.specs.bar_end_shifter |
|
|
Satellite Shifter |
|
|
Chainring |
|
|
Power Meter |
|
|
Remote |
|
| Brakes | |
|
Brakes |
|
|
Front Brakes |
|
|
Front Rotor |
|
|
Rear Brakes |
|
|
Rear Rotor |
|
|
Rotors |
|
| Cockpit | |
|
Bar Width |
|
|
Dropper Length |
|
|
Grips / Bar Tape |
|
|
Handlebars |
|
|
One Piece Handlebar Stem |
|
|
Aero Basebar |
|
|
Aero Cockpit |
|
|
Aero Extension |
|
|
Aero Riser |
|
|
Headset |
|
|
Saddle |
|
|
Seatpost |
|
|
Seatpost Offset |
|
|
Stem |
|
|
Stem Length |
|
| Wheels | |
|
Front Wheel |
|
|
Front Rim |
|
|
Front Hub |
|
|
Front Tire |
|
|
Front Thru Axle |
|
|
Rear Wheel |
|
|
Rear Rim |
|
|
Rear Hub |
|
|
Rear Tire |
|
|
Rear Thru Axle |
|
|
Tires |
|
|
Rims |
|
|
Valves |
|
| Ebike | |
|
Battery |
|
|
Drive Unit |
|
|
Battery Charger |
|
|
Display |
|
|
Classification |
|
|
Range Extender |
| Specs | |
|---|---|
|
Headset |
|
|
Fork Axle to Crown |
|
|
Fork Offset |
|
|
Fork Compatibility |
|
|
Suspension System |
|
|
Rear Travel |
|
|
Recommended Sag |
|
|
Shock Length |
|
|
Shock Stroke |
|
|
Shock Mounting Hardware Upper |
|
|
Shock Mounting Hardware Lower |
|
|
Shock Bushing Size Front |
|
|
Shock Bushing Size Rear |
|
|
Bottom Bracket Shell |
|
|
Chainline |
|
|
Max Chainring Size |
|
|
Front Derailleur Mount |
|
|
Chainguide Standard |
|
|
Derailleur Hanger |
|
|
UDH Compatible |
|
|
Front Spacing |
|
|
Rear Spacing |
|
|
Rear Brake Mount |
|
|
Front Brake Mount |
|
|
Rear Brake Mount |
|
|
Max Rotor Size |
|
|
Max Tire Clearance May vary according to tire and rim model |
|
|
Seat Post Diameter |
|
|
Seat Clamp Diameter |
|
|
Sealant |
|
|
Water Bottle Mounts |
|
|
Downtube Storage |
Am schnellsten von T1 nach T2
Das P5 ist eine Zeitfahrmaschine. Es ist für eine einzige Sache gemacht - dich so schnell wie möglich von A nach B zu bringen. Es ist genauso auf Big Island zu Hause wie in jedem kritischen Zeitfahren der Tour de France, das P5 ermöglicht außergewöhnliche Leistungen. Das vergangene Jahrzehnt hat im Profi Bereich des Radsports gezeigt, wie wichtig es ist, eine starke Performance bei Zeitfahren gegen Ende der großen Rundfahrten liefern zu können und das P5 war ein Schlüsselelement zu den Siegen des Team Jumbo-Vismas beim Giro d'Italia und der Tour de France in 2023.

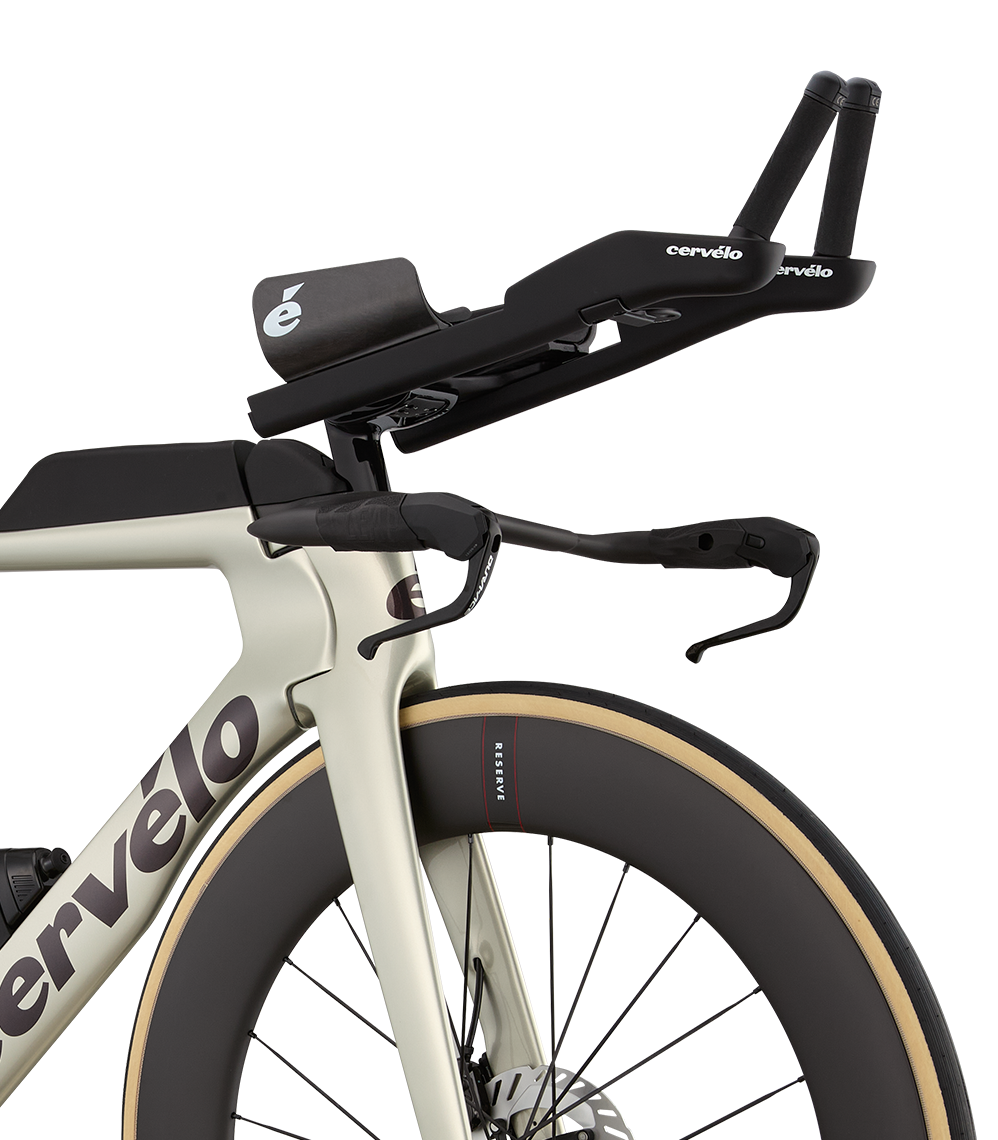

Dial In Your Fit

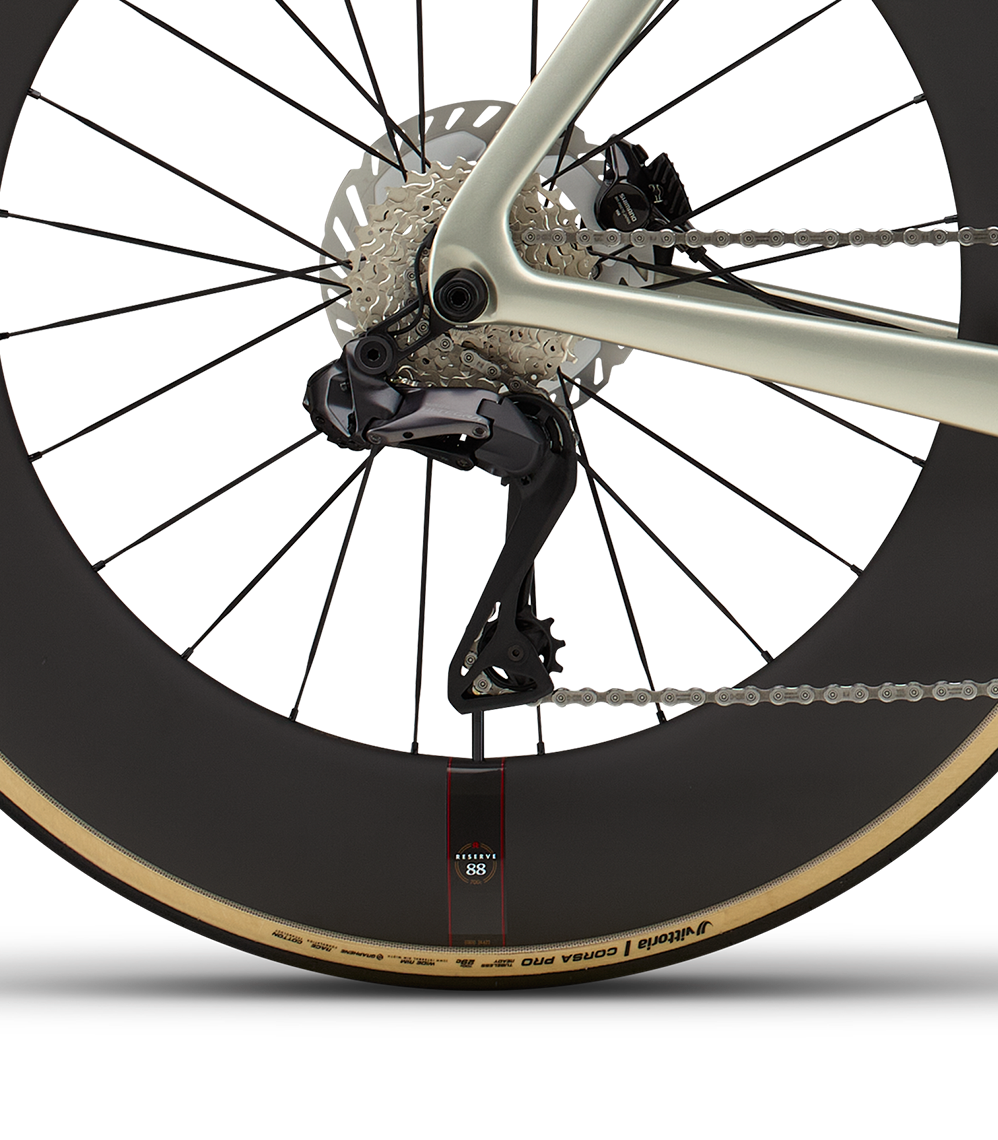

Super Fast Reserve Wheels

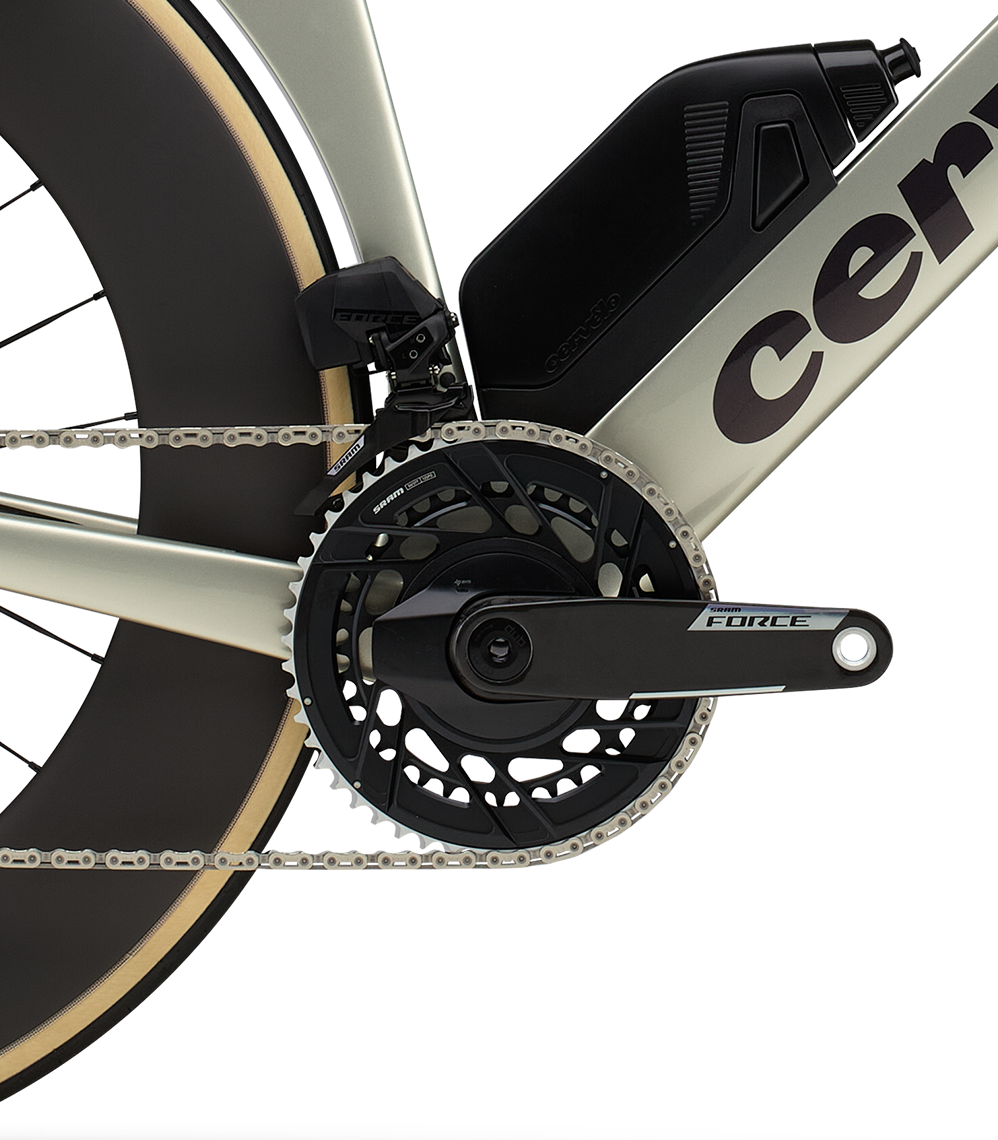

SRAM Force AXS Drivetrain
| Frame | |
|---|---|
|
Material |
|
|
Features |
|
|
Frame |
|
|
Fork |
|
|
Shock |
|
|
Travel |
|
|
Weight |
|
|
Wheel Size |
|
|
Accessories |
|
| Drivetrain | |
|
Bottom Bracket |
|
|
Cassette |
|
|
Chain |
|
|
Chainguide |
|
|
Crank Length |
|
|
Crankset |
|
|
Front Derailleur |
|
|
Left Shifter |
|
|
Rear Derailleur |
|
|
Right Shifter |
|
|
Shifters |
|
|
Bar End Satellite Shifter |
|
|
Translation missing: de.bike_data.specs_labels.specs.bar_end_shifter |
|
|
Satellite Shifter |
|
|
Chainring |
|
|
Power Meter |
|
|
Remote |
|
| Brakes | |
|
Brakes |
|
|
Front Brakes |
|
|
Front Rotor |
|
|
Rear Brakes |
|
|
Rear Rotor |
|
|
Rotors |
|
| Cockpit | |
|
Bar Width |
|
|
Dropper Length |
|
|
Grips / Bar Tape |
|
|
Handlebars |
|
|
One Piece Handlebar Stem |
|
|
Aero Basebar |
|
|
Aero Cockpit |
|
|
Aero Extension |
|
|
Aero Riser |
|
|
Headset |
|
|
Saddle |
|
|
Seatpost |
|
|
Seatpost Offset |
|
|
Stem |
|
|
Stem Length |
|
| Wheels | |
|
Front Wheel |
|
|
Front Rim |
|
|
Front Hub |
|
|
Front Tire |
|
|
Front Thru Axle |
|
|
Rear Wheel |
|
|
Rear Rim |
|
|
Rear Hub |
|
|
Rear Tire |
|
|
Rear Thru Axle |
|
|
Tires |
|
|
Rims |
|
|
Valves |
|
| Ebike | |
|
Battery |
|
|
Drive Unit |
|
|
Battery Charger |
|
|
Display |
|
|
Classification |
|
|
Range Extender |
| Specs | |
|---|---|
|
Headset |
|
|
Fork Axle to Crown |
|
|
Fork Offset |
|
|
Fork Compatibility |
|
|
Suspension System |
|
|
Rear Travel |
|
|
Recommended Sag |
|
|
Shock Length |
|
|
Shock Stroke |
|
|
Shock Mounting Hardware Upper |
|
|
Shock Mounting Hardware Lower |
|
|
Shock Bushing Size Front |
|
|
Shock Bushing Size Rear |
|
|
Bottom Bracket Shell |
|
|
Chainline |
|
|
Max Chainring Size |
|
|
Front Derailleur Mount |
|
|
Chainguide Standard |
|
|
Derailleur Hanger |
|
|
UDH Compatible |
|
|
Front Spacing |
|
|
Rear Spacing |
|
|
Rear Brake Mount |
|
|
Front Brake Mount |
|
|
Rear Brake Mount |
|
|
Max Rotor Size |
|
|
Max Tire Clearance May vary according to tire and rim model |
|
|
Seat Post Diameter |
|
|
Seat Clamp Diameter |
|
|
Sealant |
|
|
Water Bottle Mounts |
|
|
Downtube Storage |
Dial in the optimal P5 frame size using our Size & Setup Calculator
Find Your Fit
Dial in the perfect frame size and setup using our Fit Tool below. Simply input your saddle height, and your arm pad reach and stack to see your optimal frame size options.
Your Measurements
How to get fittedRecommended Sizing & Setup
The P5 is a purpose-built triathlon machine, and getting the fit right isn't just about comfort — it's about performance. Small adjustments to your stack, reach, or pad position can mean the difference between holding your power through T2 and arriving at the run already cooked. Find a Cervélo dealer near you to get fitted properly before you race.
| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach | 389 | 406 | 420 | 433 | 446 | 455 |
| Stack | 461 | 482 | 498 | 516 | 535 | 556 |
| Bb drop | 75 | 75 | 75 | 75 | 75 | 74 |
| Chainstay length | 405 | 405 | 405 | 405 | 405 | 405 |
| Seat tube angle saddle height | 580 | 630 | 680 | 720 | 740 | 780 |
| Head tube angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° | 72.4° |
| Fork axle to crown | 367 | 368 | 368 | 368 | 368 | 369 |
| Fork offset | 52 | 43 | 43 | 43 | 43 | 40.4 |
| Trail | 62.1 | 62.1 | 62.1 | 62.1 | 62.1 | 65.3 |
| Front center | 582 | 583 | 602 | 622 | 640 | 654 |
| Head tube length | 59 | 71 | 88 | 107 | 127 | 148 |
| Wheelbase | 975 | 976 | 995 | 1015 | 1033 | 1048 |
| Standover height | 739 | 759 | 775 | 792 | 812 | 906 |
| Seat tube length | 475 | 496 | 513 | 530 | 550 | 571 |
| Top tube length | 513 | 535 | 553 | 571 | 589 | 604 |
Download manuals below for setup, care, and reference information for your Cervélo P5.
Find genuine replacement parts for your P5 using our Spare Parts Finder below.
Find small partsCheck our FAQs section, or get in touch with our customer service team for further support with your P5.
Chat with a Cervélo Expert
